CO & H2O Analysis in spray drying

The safety and efficiency of spray drying has become increasingly important for manufacturers operating in the food and pharmaceutical industries due to increasing demand, energy prices, and environmental requirements. Manufacturers therefore face the challenge of improving efficiency while keeping their operations continuous, cost effective, and, most importantly, safe.

Get a quote

Key benefits

  • Improve process safety & efficiency
  • High-end TDL based analysis
  • Multipoint sampling, up to 8 streams
  • Unmatched sampling capabilities (high temp, before cyclones/bag filters)
  • CIP & ATEX Suitable probes
  • Advanced event & alarm logging
  • UPS

“The only CO-detection system that generates money and pays itself off in a couple of months!”

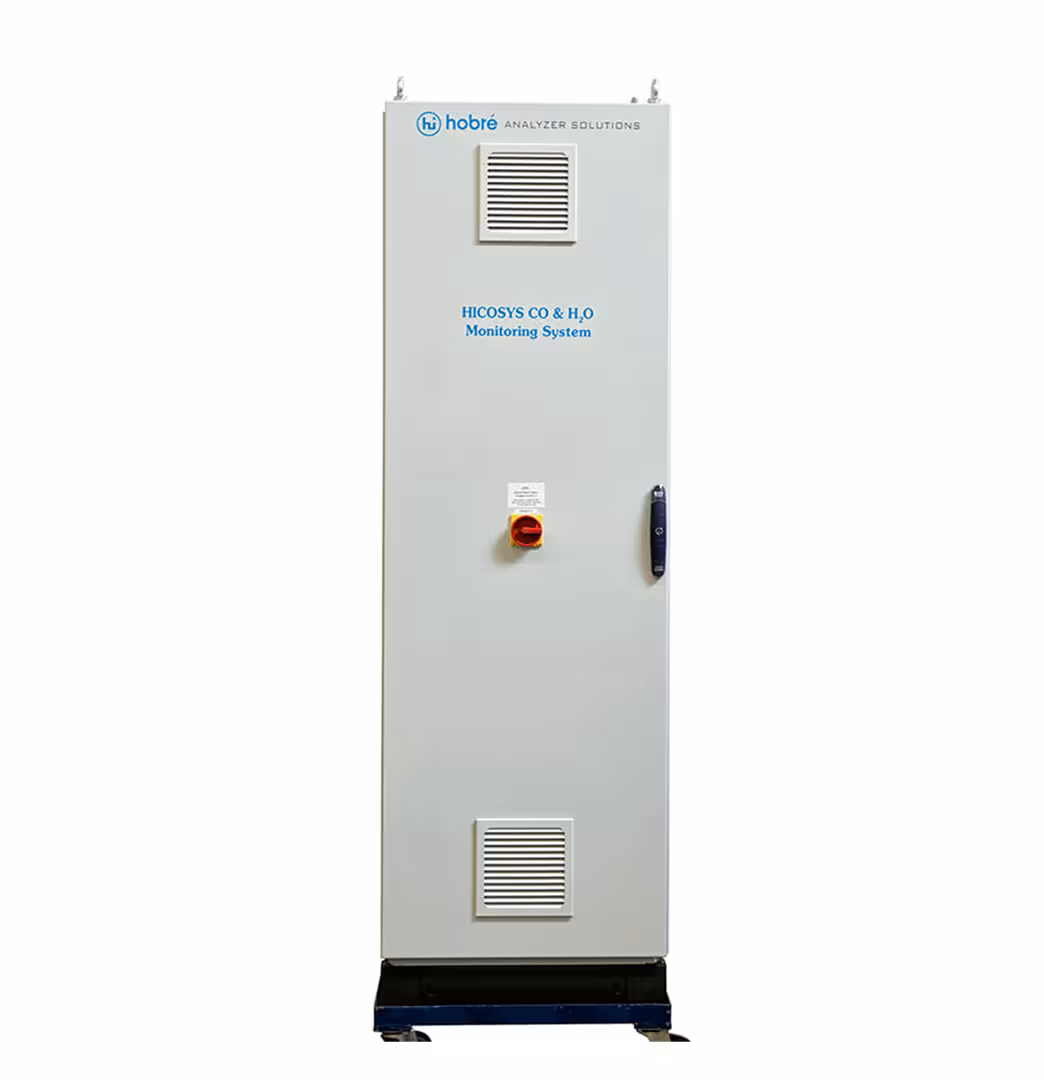

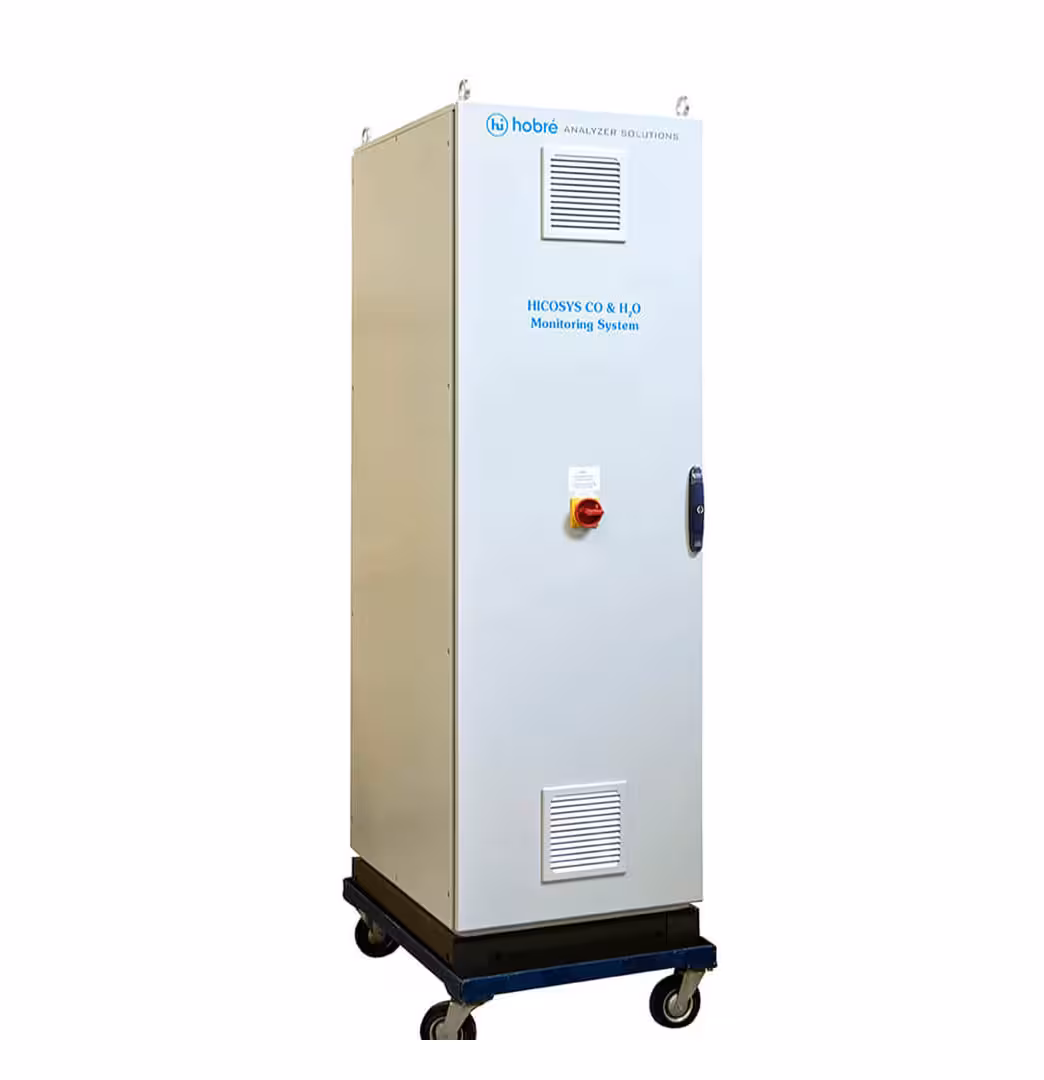

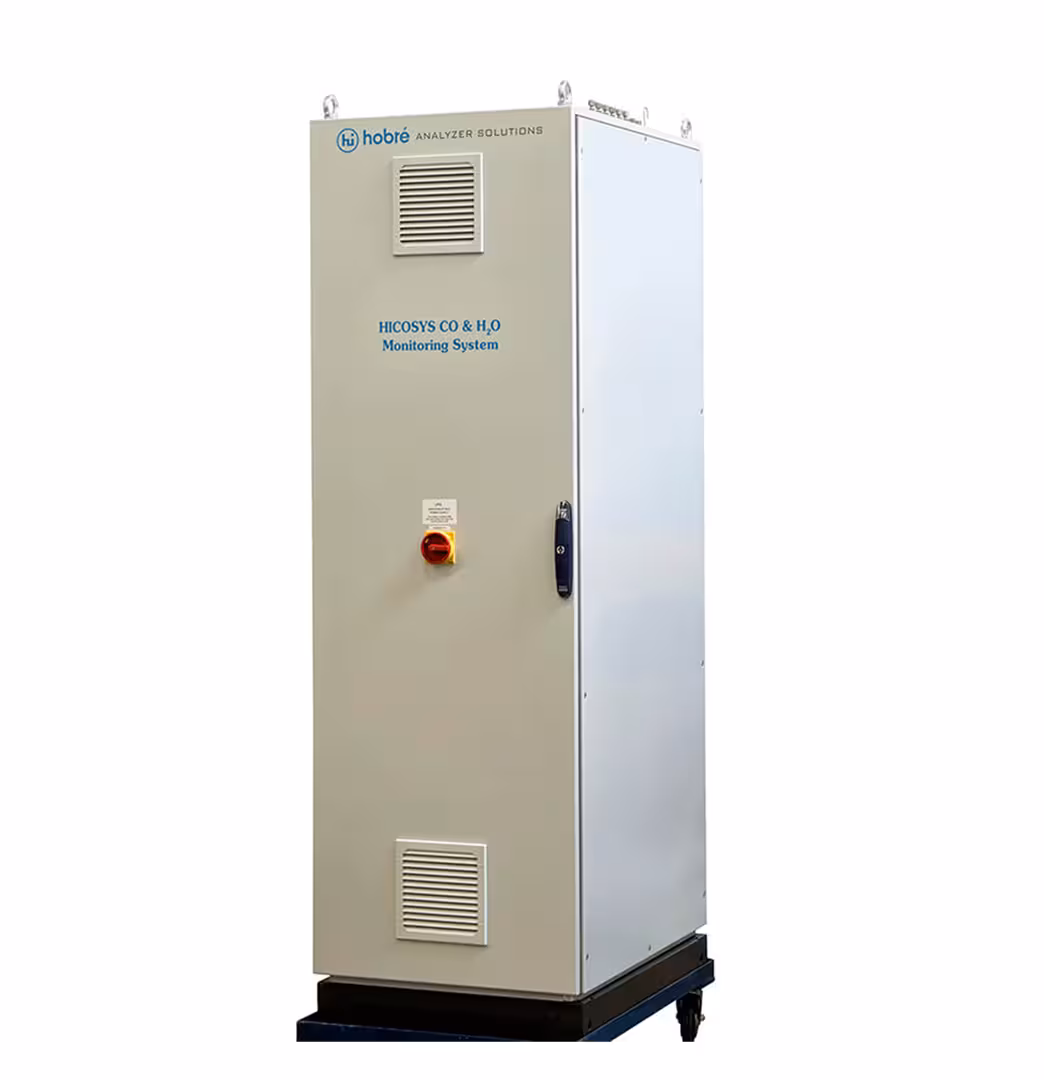

Flexible carbon monoxide (CO) and moisture (H2O) analyzer

The Hobré HICOSYS is the first to combine H2O and CO as two measuring components in one analyser. Enabled with multiple sample points, the HICOSYS is an exceedingly flexible instrument that can be fitted at all types of spray dryer installations. It sequentially measures up to eight sample points with a fast response of only 10 – 15 seconds per sample. CO and H2O in absolute humidity are measured simultaneously.

HICOSYS offers outstanding measurement of these parameters, making it possible for powder producers worldwide to either use one or both measuring components with only one instrument. The combination provides better control of powder sedimentation and further reduces smouldering.

The drivers for carbon monoxide (CO) and moisture (H2O) analysis



Safety

Coagulation and lump formation in processed product, caused by undesired and uncontrolled process conditions, pose a large risk to the dryer’s operation and shorten production cycles between cleaning. Moreover, coagulated product is exposed to increased residence times, causing undesired and degenerating smouldering reactions which create a significant risk of fire and explosion. CO detection, as a pre-warning, is widely used as a dryer installation’s safety system.

Efficiency

Humidity is one of the most important parameters which can be used in maximizing the efficiency of spray drying operations. Measurement of absolute humidity at elevated temperatures and high dust loads – in an accurate and reliable way – has always been a challenge for end-users. RH Capacitive and dew point measurement technology has proven to be inaccurate and unreliable for these challenging applications. In addition, soft sensors (material balance, flow, density) calculation of H2O depends on too many parameters and is often considered to be imprecise.

With our proprietary probes, the HICOSYS ADVANCED is capable of measurement at the most challenging locations such as the tower exhaust, even before filtration by cyclones and/or bag filters.
